SCA3600

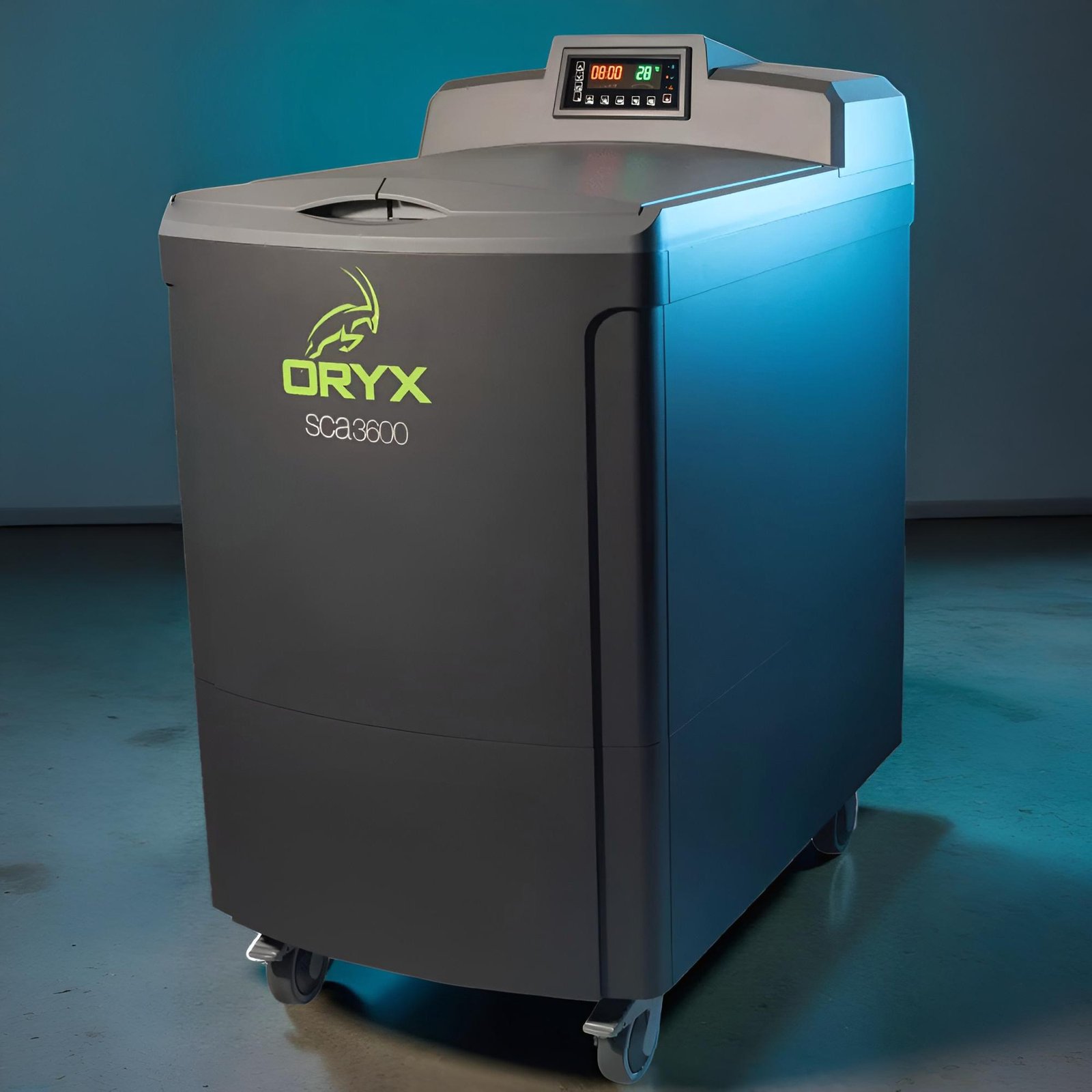

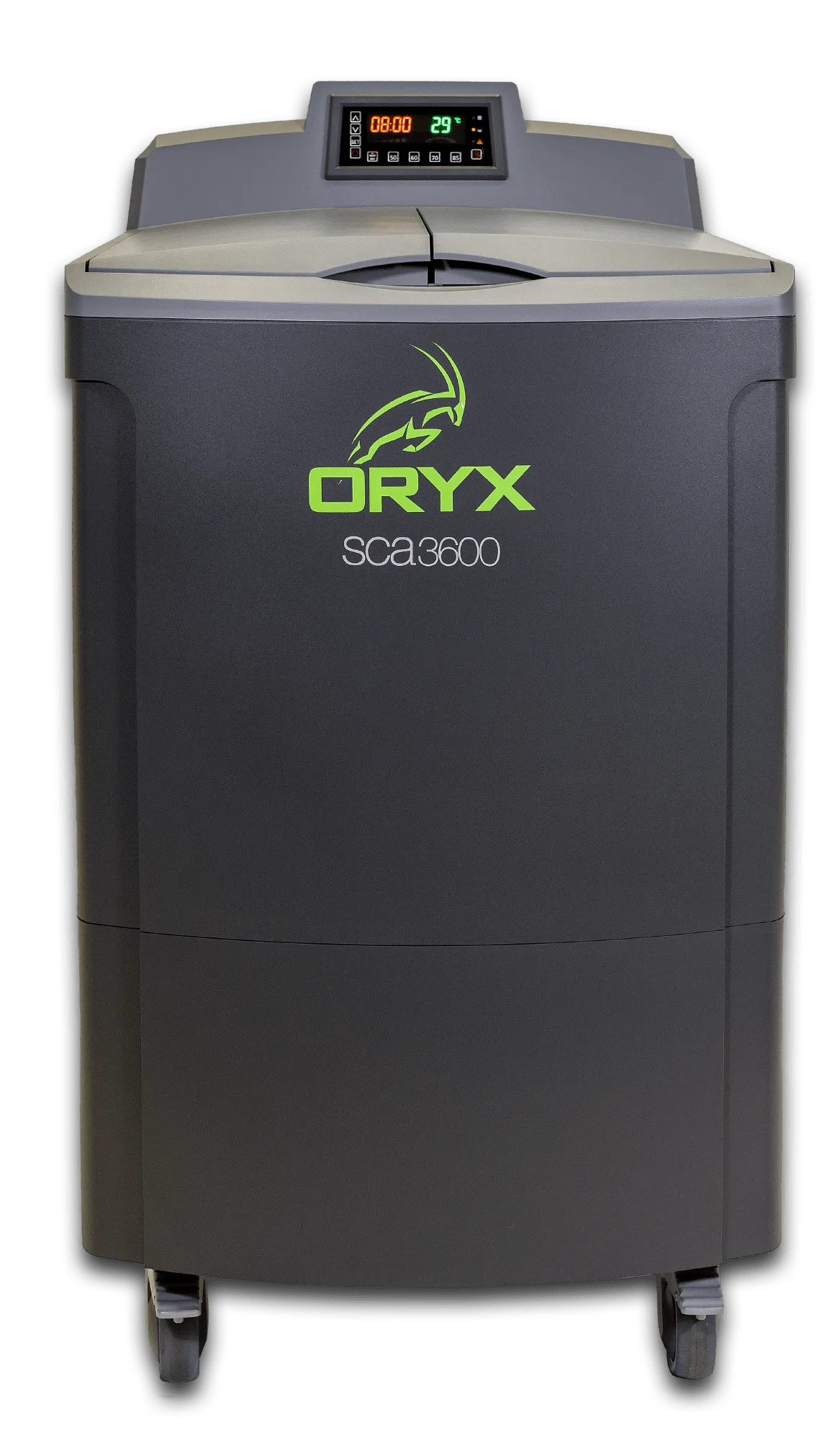

About SCA3600
The SCA3600 is a high-capacity industrial system designed for efficient removal of soluble support materials from 3D printed parts. It supports a wide range of materials—including ABS, ASA, PC, Nylon, and PEEK—and is optimized for use with FDM/FFF and Material Jetting technologies like PolyJet and Extrusion.
Key features include a user-friendly electronic interface for presetting temperature and time, convenient loading and unloading, and a rugged stainless-steel tank built for demanding support removal tasks. The SCA3600 delivers reliable, high-throughput post-processing—making it the ideal solution for your 3D printing finishing needs.
SCA3600 – Key Features
Focused on User Comfort and Productivity, Backed by Engineering Excellence
Overall Size: 36.5L x 22.8 W x 42.8 H in. (92.7 L x 57.9 W x 108.7 H cm)
16 x 16 x 14 in. (40.6 x 40.6 x 35.6 cm) Stainless Steel Removable Parts Basket
Capacity: 27 gallons (102 liters)
Power Requirements: 230VAC +/- 10%, ~ 50/60 Hz - 15A - 3400W
4 x 4 x 4 in. (10 x 10 x 10 cm) Small Parts Basket included
Stainless Steel Tank & Durable Pumping System compatible with water-soluble and caustic-soluble printed support materials
Proven Support Removal from FFF/FDM parts including ABS, ASA, PC, Nylon, PEEK, and others
Presets designed for 3D printed parts temperatures: 50°, 60°, 70° and 85° C
“Heat Off” temp. selection for Material Jetting & Curing (MJ), such as Polyjet
User-controlled Digital Timer
Unique Spray Nozzle & Pump Configuration provides optimized & patented flow
Flow Reducer is included for delicate parts
Whisper-quiet Operation for in-office use or industrial setting
Integral Hinged Lid to reduce water waste & maintain accurate temperature
Built-in Safety Features such as Over Temperature & Water Level Alarms
Field replaceable Sub-assemblies
CE/ cTUVus/ RoHS/ WEEE/ RCM Regulatory Approvals
1 Year Warranty & US-based Technical/Customer Support with strong AM industry experience
SCA3600 User Manuals
Click below to download user manuals and product spec documents for the sca3600.
The SCA3600 offers expanded system capacity, versatile cleaning capabilities, and a wide selection of accessory components. Designed for reliability, ease of use, and quiet operation, it stands out as an ideal solution for additive manufacturing service providers and industrial manufacturers requiring the production of large, complex parts or high-volume throughput. Built to withstand harsh, caustic industrial environments, the SCA3600 by ORYX ensures long-lasting performance with minimal maintenance and straightforward servicing. It sets the industry standard for efficient removal of soluble supports in large-scale and high-output applications.
