Micro P102 Plus

2µm Ultra-High-Resolution Micro-DLP 3D Printer

The Micro P102 Plus represents the pinnacle of the Nano-XS3DTech micro-nano platform, delivering an industry-leading 2µm optical accuracy. Built for the most demanding microfabrication work, it combines a 4K UVLED light engine with a staggering 900M-pixel resolution across the build area, making it the ideal solution for microfluidics, micro-optics, MEMS tooling, and precision micro-components where sub-cellular feature fidelity is non-negotiable. Mounted on a heavy, vibration-isolated stand for maximum stability, the P102 Plus is engineering-grade micro-manufacturing in a compact footprint.

cfc1b87d_2a4c_4ac6_9518_22b1ed38fc5bq_photoroom_1

Key Benefits:

Industry-Leading 2µm Optical Accuracy – The finest resolution in the Nano-XS3DTech lineup, purpose-built for micro-nano geometries.
900M Pixel Density – Extraordinary XY resolution across the build area for exceptional surface detail and feature edge definition.
4K UVLED Light Engine – Uniform, high-intensity curing for consistent results across every layer.
Fine Layer Control – 2–30µm print layer thickness for precise vertical resolution and smooth Z transitions.
Vibration-Isolated Platform – Rigid stand construction eliminates external interference for repeatable micron-level accuracy.
Broad Material Compatibility – Runs photosensitive, high-temperature, fully transparent, flexible, and technical ceramic resins (zirconia, alumina).
Ideal for R&D and Low-Volume Production – Engineered for labs, universities, and precision service bureaus.

Technical Specification

Optical Accuracy	2μm
Build Size	60 x 60 x 50mm
Light Source	4K UVLED
Print Layer Thickness	2–30μm
Pixel Count (X, Y)	900M
Equipment Size	615 x 670 x 650mm
Printing Materials	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials

Why Choose the Micro P110 Plus?

Ideal Applications

The Micro P102 Plus delivers precision micro-scale 3D printing with the detail, material versatility, and reliability professionals demand.

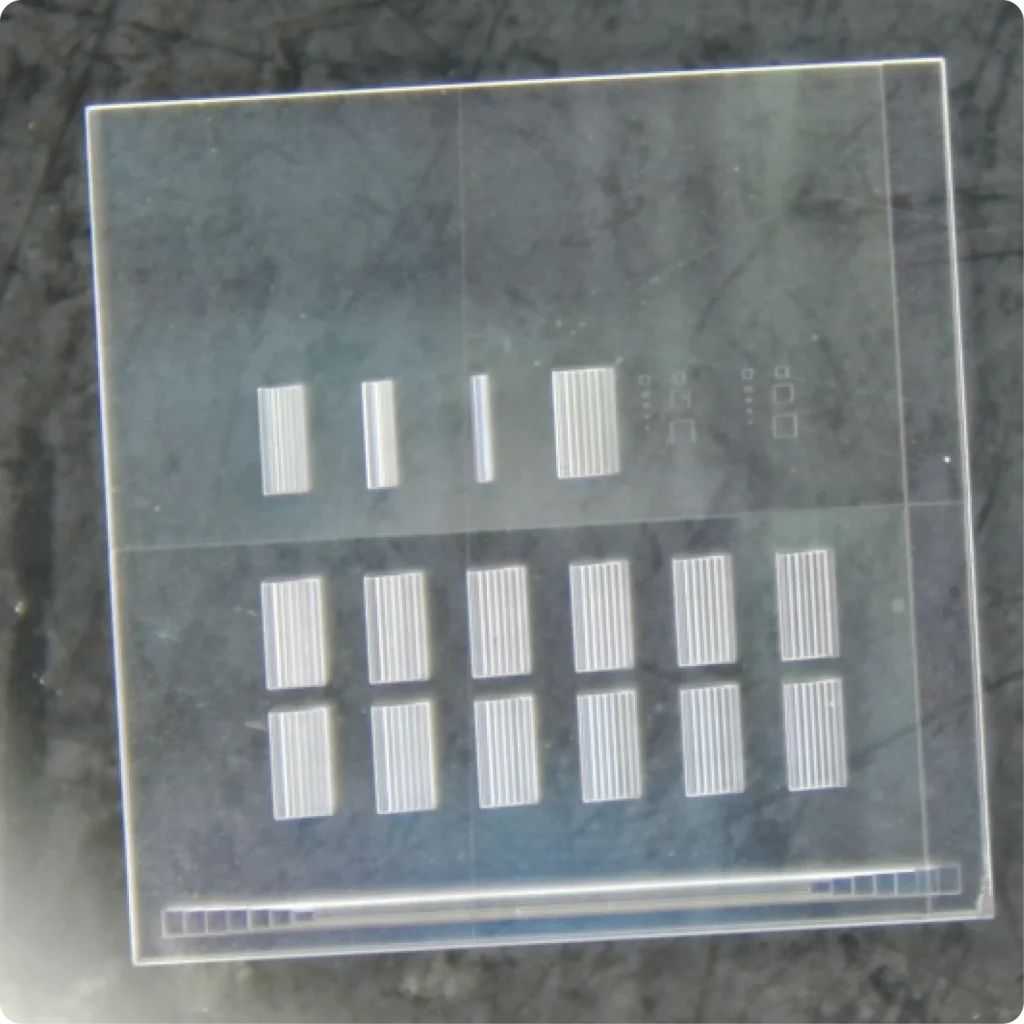

Microfluidics

Fabricate channels, chips, and lab-on-a-chip devices with micron-scale feature control.

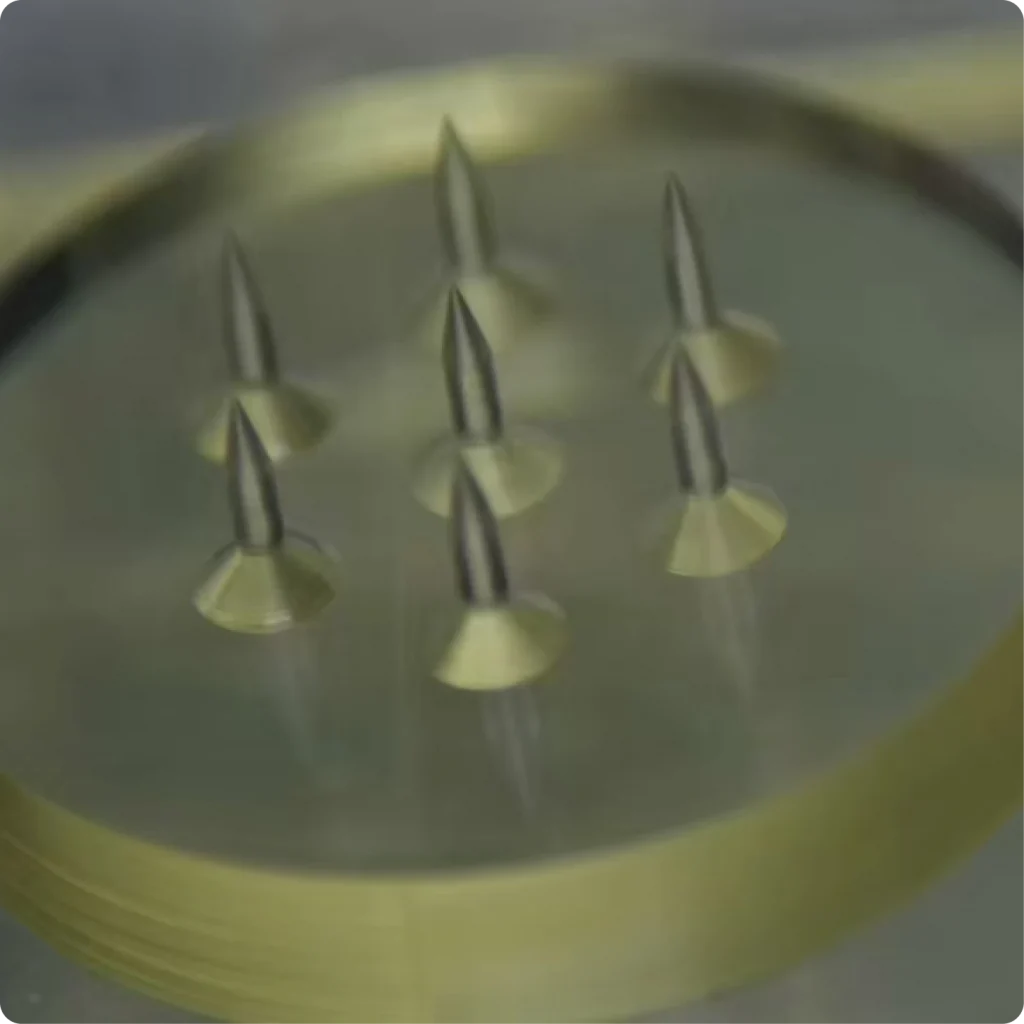

MEMS & Micro-Tooling

Create precision micro-molds, connectors, and miniature mechanical parts.

Micro-Optics

Produce lenses, waveguides, and optical components with fine surface fidelity.

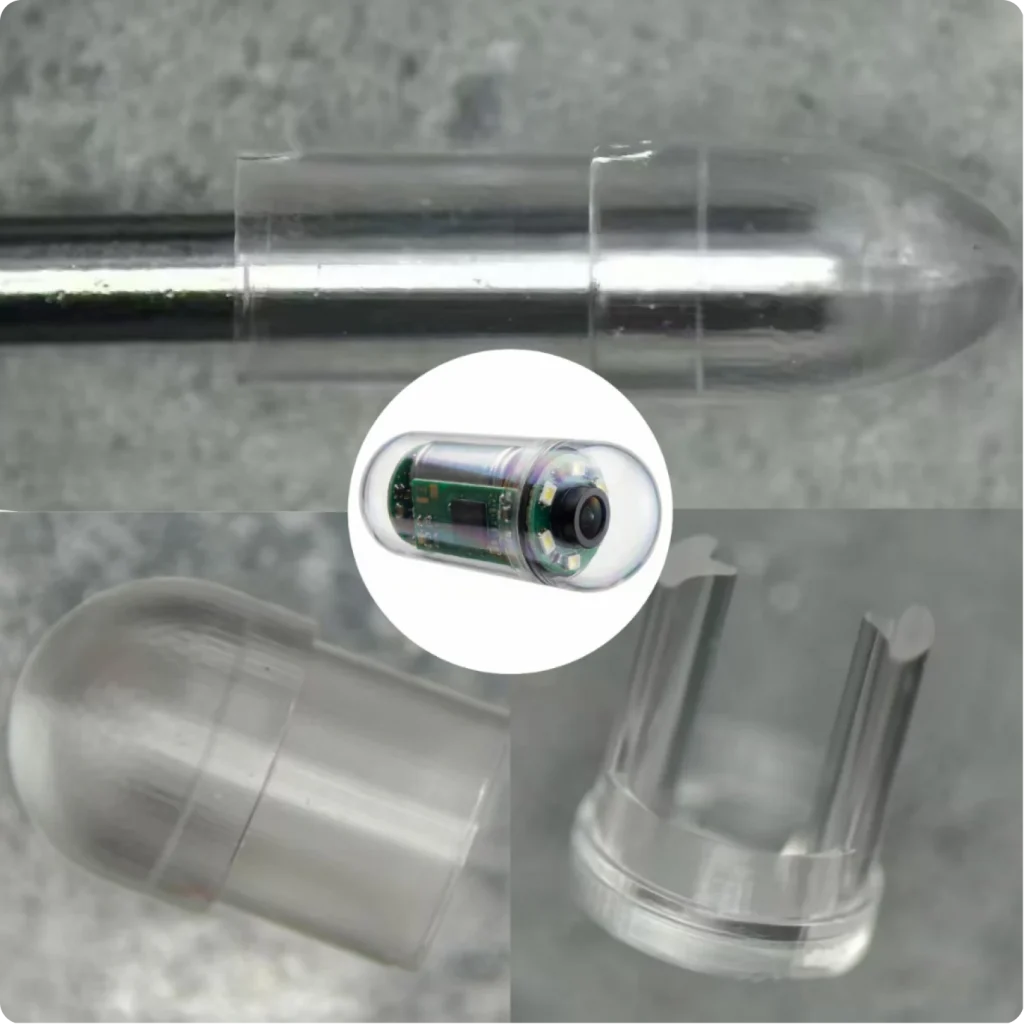

Medical & Life Sciences

Micro-scale prototypes and devices for research and diagnostics.

Micro Nano 3D Printers Comparison

	Micro P135 35µm Micro Nano 3D Printing Equipment	Micro P215 Plus 15µm Micro Nano 3D Printing Equipment	Micro P110 Plus 10µm Micro Nano 3D Printing Equipment	Micro P102 Plus 2µm Micro Nano 3D Printing Equipment
Build Size	67.2 × 37.8 × 150 mm	84 × 63 × 70 mm	115 × 128 × 65 mm	60 × 60 × 50 mm
Optical Accuracy	35µm	15µm	10µm	2µm
Print Layer Thickness	5–50µm	5–50µm	2–50µm	2–50µm
Light Source	UVLED	UVLED	4k UVLED	4k UVLED
Equipment Size	560 × 600 × 650 mm	615 × 670 × 650 mm	650 × 700 × 700 mm	615 × 670 × 650 mm
Pixel Count (X, Y)	2.07M	23.52M	140M	900M
Printing Materials	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.
