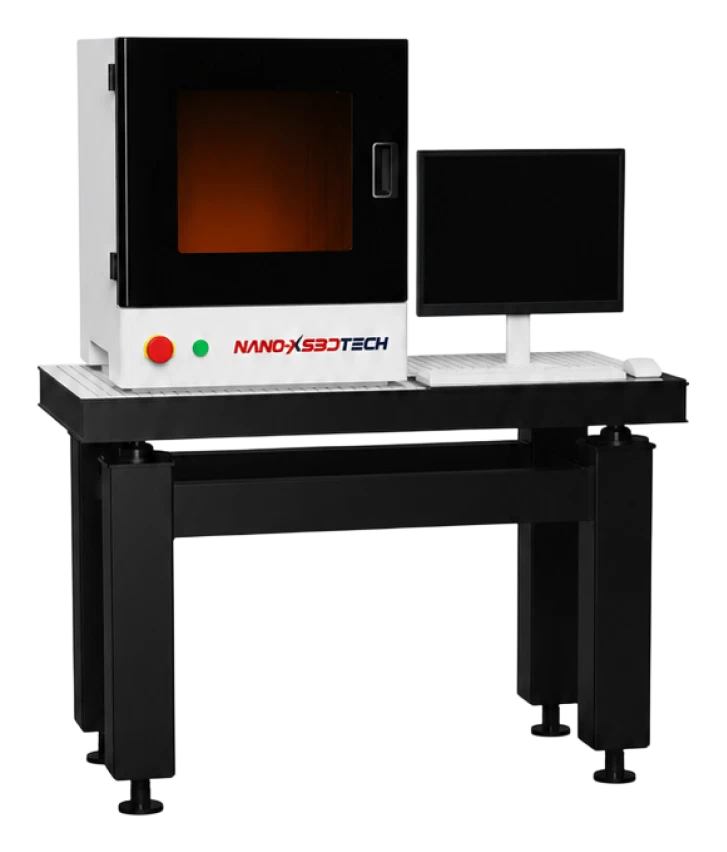

Micro P135

35µm Entry-Level Micro-Nano 3D Printer

The Micro P135 is the accessible entry point into Nano-XS3DTech micro-nano 3D printing, delivering 35µm optical accuracy in a compact, benchtop form factor. With a tall 67.2 x 37.8 x 150mm build volume, a UVLED light engine, and 2.07M-pixel resolution, it is ideal for labs, educators, and businesses taking their first step into micro-scale additive manufacturing. Despite its compact 560 x 600 x 650mm footprint, the P135 runs the same broad material set as the rest of the range — including technical ceramics — making it a capable and cost-effective introduction to precision micro-printing.

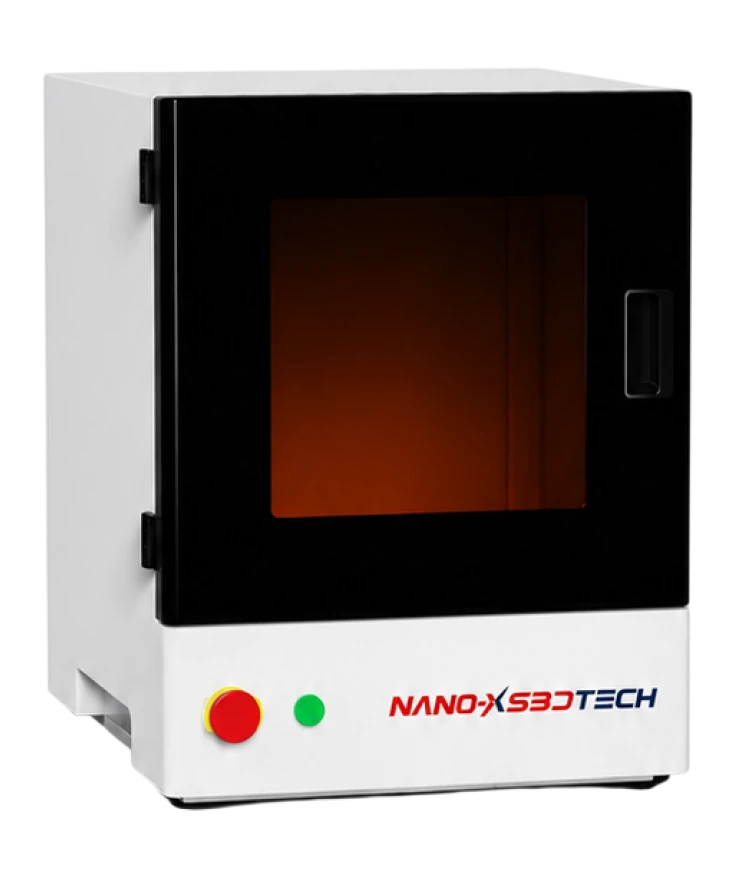

cfc1b87d_2a4c_4ac6_9518_22b1ed38fc5bq_photoroom_1

Key Benefits:

Accessible 35µm Optical Accuracy – A cost-effective entry into micro-scale additive manufacturing.
Tall Build Volume – 67.2 x 37.8 x 150mm supports tall parts in a compact machine.
Compact Benchtop Footprint – 560 x 600 x 650mm fits easily into labs and workspaces.
UVLED Light Engine – Reliable, uniform curing for consistent results.
Fine Layer Control – 5–30µm print layer thickness for smooth surface quality.
Broad Material Compatibility – Photosensitive, high-temperature, fully transparent, flexible, and ceramic resins (zirconia, alumina).
Ideal First Micro Printer – Perfect for education, evaluation, and light production.

Technical Specification

Optical Accuracy	35μm
Build Size	67.2 x 37.8 x 150mm
Light Source	UVLED
Print Layer Thickness	5–30μm
Pixel Count (x, y)	2.07M
Equipment Size	560 x 600 x 650mm
Printing Materials	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials

Why Choose the Micro P135?

Ideal Applications

The Micro P135 delivers precision micro-scale 3D printing with the detail, material versatility, and reliability professionals demand.

Education & Training

An ideal teaching platform for micro-scale additive manufacturing.

Prototyping

Cost-effective detailed prototypes for early development.

Small-Batch Production

Light production of micro-parts and components.

Evaluation & R&D

A low-risk entry into micro-DLP technology.

Micro Nano 3D Printers Comparison

	Micro P135 35µm Micro Nano 3D Printing Equipment	Micro P110 Plus 10µm Micro Nano 3D Printing Equipment	Micro P215 Plus 15µm Micro Nano 3D Printing Equipment	Micro P102 Plus 2µm Micro Nano 3D Printing Equipment
Build Size	67.2 × 37.8 × 150 mm	115 × 128 × 65 mm	84 × 63 × 70 mm	60 × 60 × 50 mm
Optical Accuracy	35µm	10µm	15µm	2µm
Print Layer Thickness	5–30µm	2–20µm	5–30µm	2–30µm
Light Source	UVLED	4k UVLED	UVLED	4k UVLED
Equipment Size	560 × 600 × 650 mm	650 × 700 × 700 mm	615 × 670 × 650 mm	615 × 670 × 650 mm
Pixel Count (X, Y)	2.07M	140M	23.52M	900M
Printing Materials	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.
