Micro P110 Plus

10µm High-Resolution Micro-DLP 3D Printer

The Micro P110 Plus balances high resolution with a generous build volume, offering 10µm optical accuracy across a 115 x 128 x 65mm platform — the largest build area in the Nano-XS3DTech micro series. Driven by a 4K UVLED light engine and 140M-pixel resolution, it is the workhorse of the range: fast enough for iterative development, precise enough for functional micro-components, and large enough for batch production of small parts. For teams that need serious throughput without sacrificing micro-scale detail, the P110 Plus is the flagship production choice.

cfc1b87d_2a4c_4ac6_9518_22b1ed38fc5bq_photoroom_1

Key Benefits:

Largest Build Area in the Micro Series – 115 x 128 x 65mm supports batch production and larger micro-scale parts.
10µm Optical Accuracy – High-resolution detail suited to functional micro-components and production tooling.
4K UVLED Light Engine – High-intensity, uniform curing for consistent quality at production speed.
Fine Layer Control – 2–20µm print layer thickness for smooth surfaces and precise vertical resolution.
140M Pixel Density – Excellent XY resolution balanced with a large build footprint.
Vibration-Isolated Platform – Stable stand construction for reliable, repeatable results.
Broad Material Compatibility – Photosensitive, high-temperature, fully transparent, flexible, and ceramic resins (zirconia, alumina).

Technical Specification

Optical Accuracy	10μm
Build Size	115 x 128 x 65mm
Light Source	4K UVLED
Print Layer Thickness	2–20μm
Pixel Count (X, Y)	140M
Equipment Size	650 x 700 x 700mm
Printing Materials	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials

Why Choose the Micro P110 Plus?

Ideal Applications

The Micro P110 Plus delivers precision micro-scale 3D printing with the detail, material versatility, and reliability professionals demand.

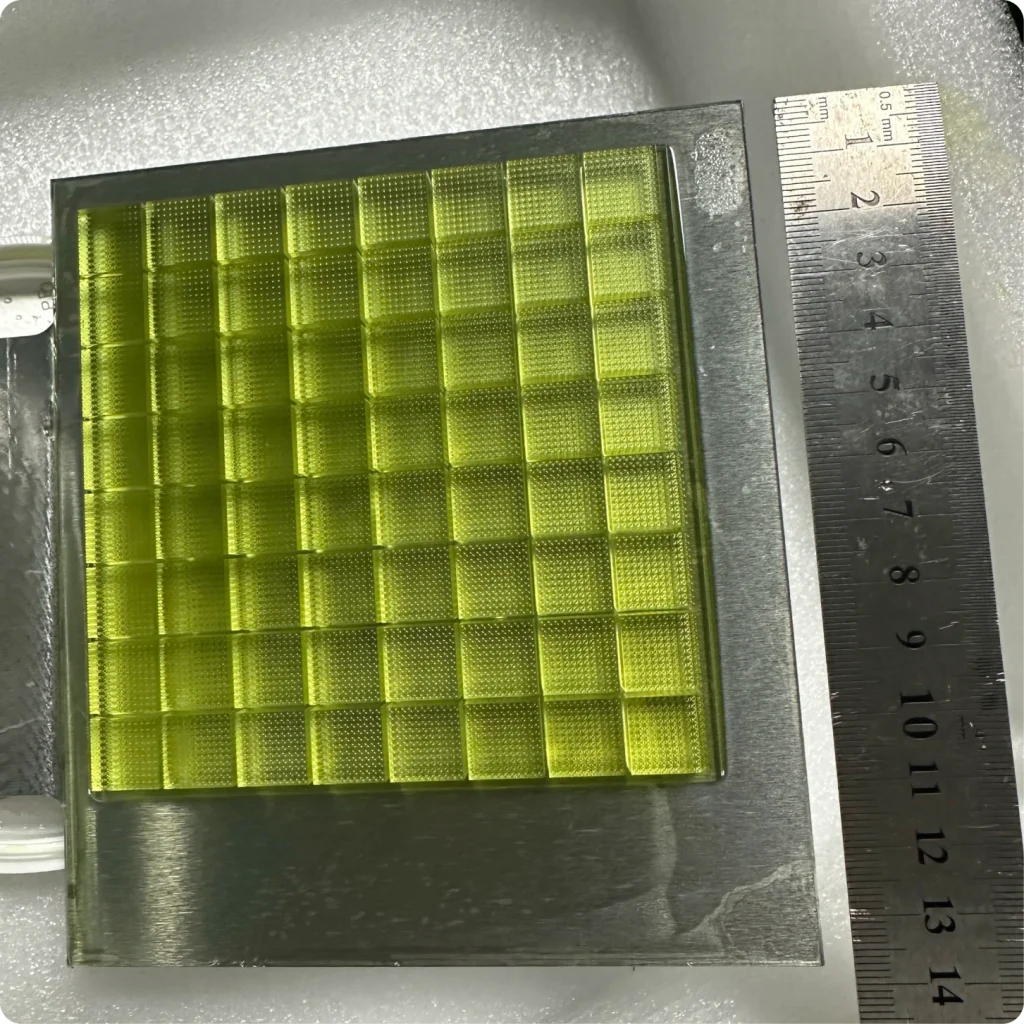

Micro-Component Production

Batch-produce connectors, housings, and functional micro-parts.

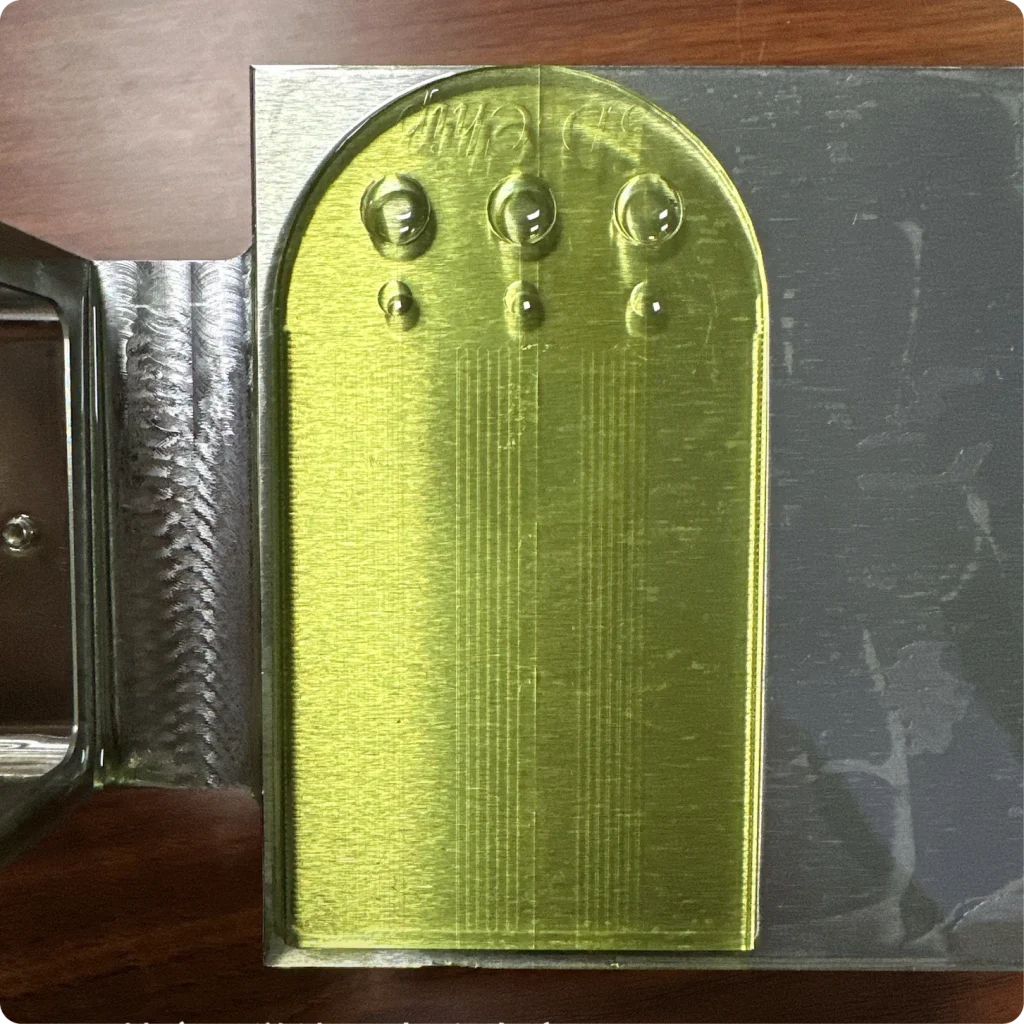

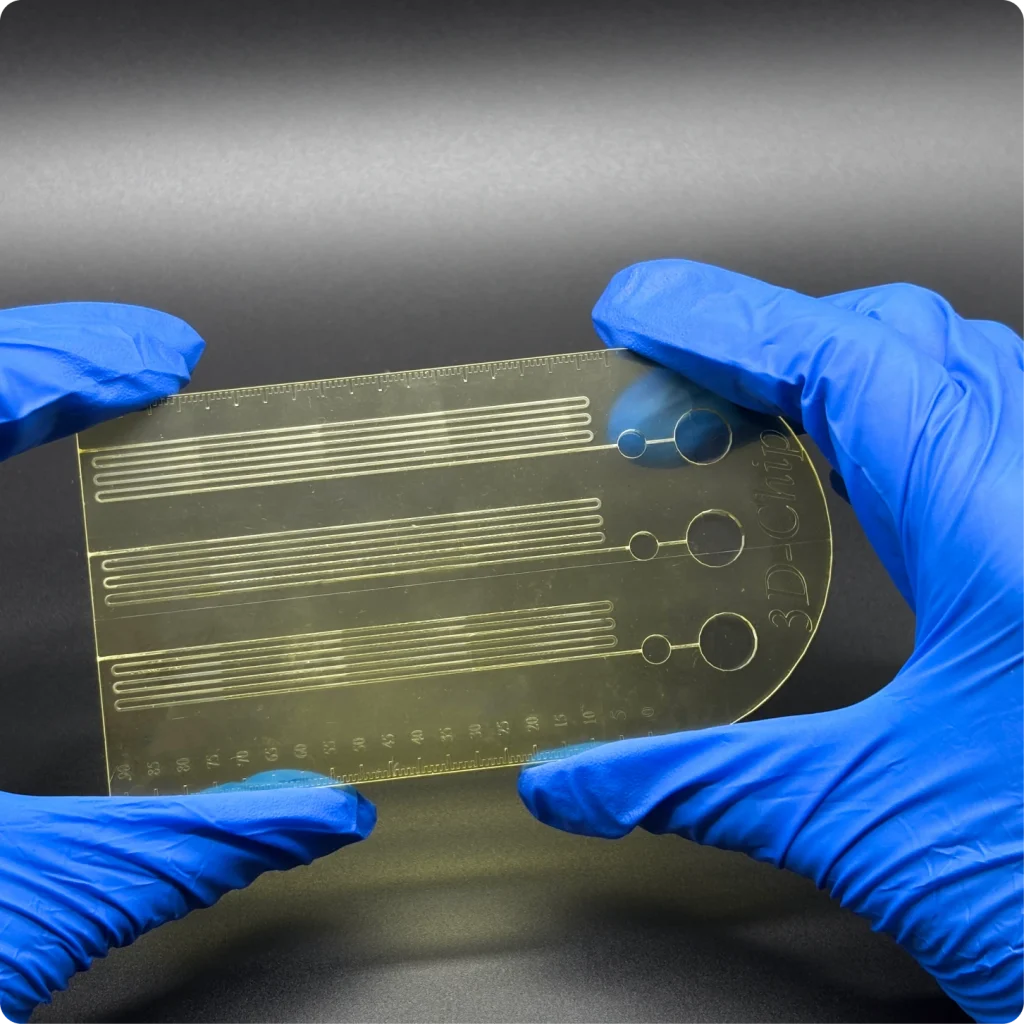

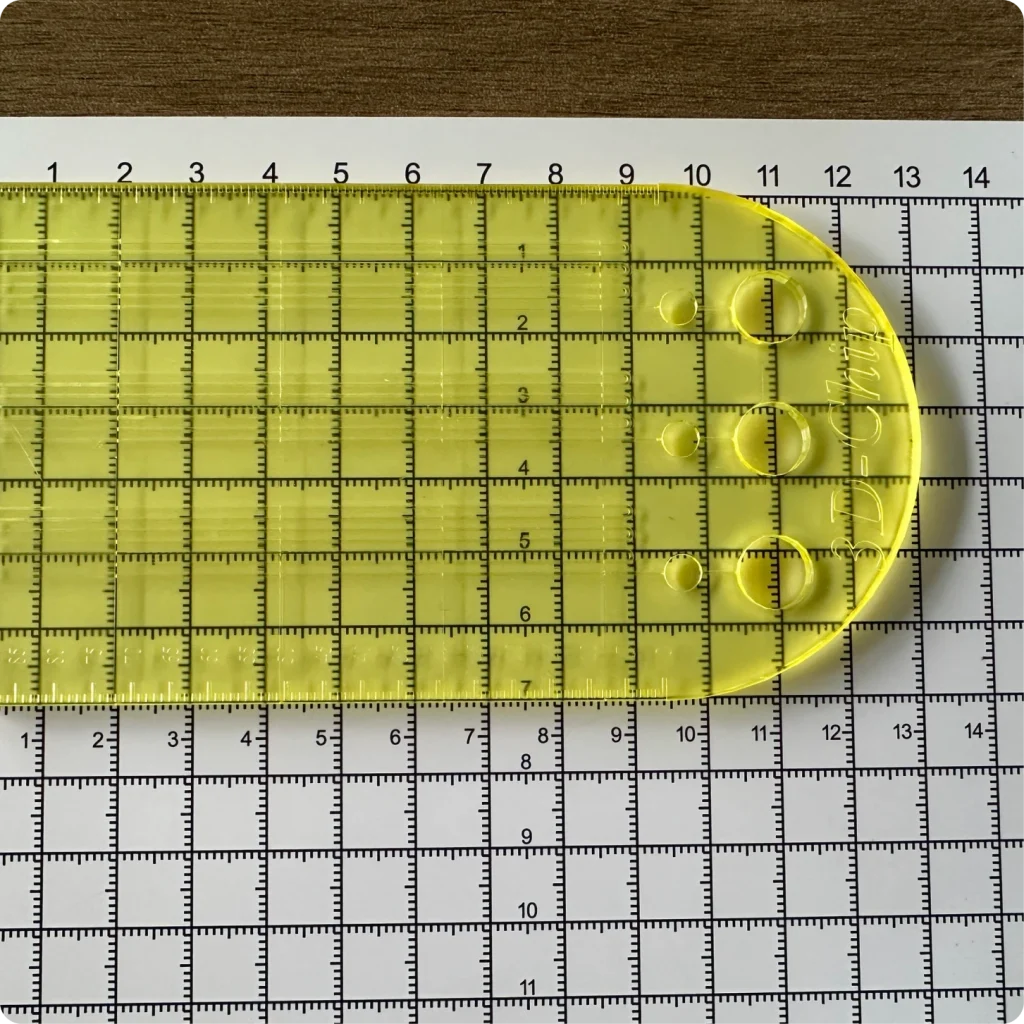

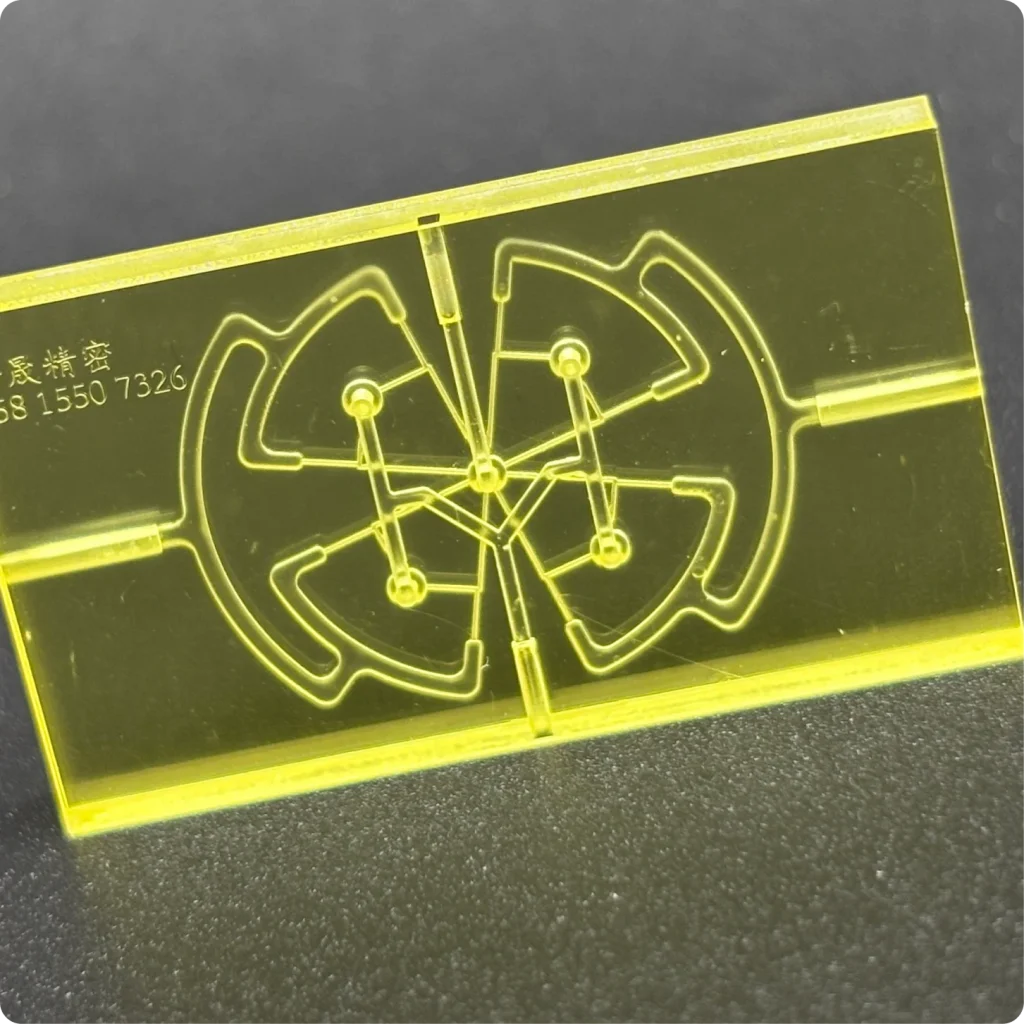

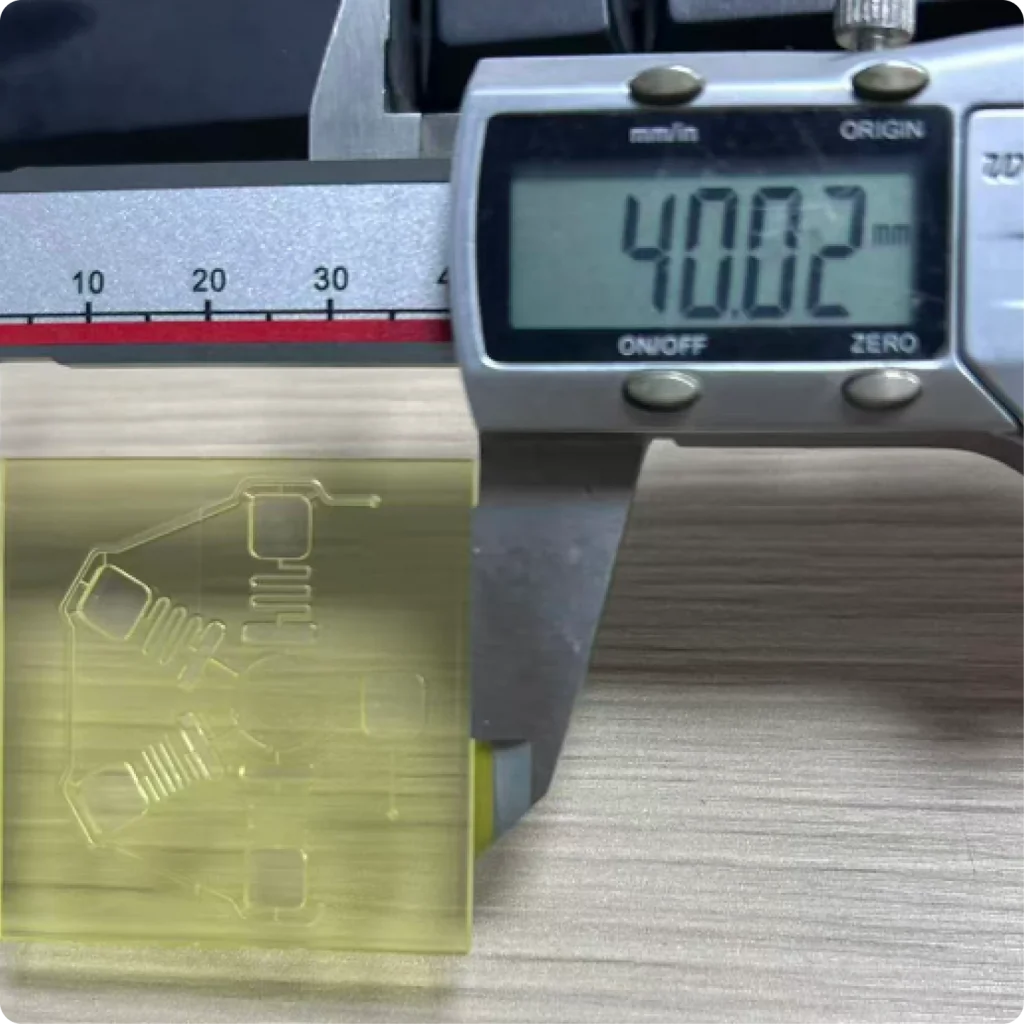

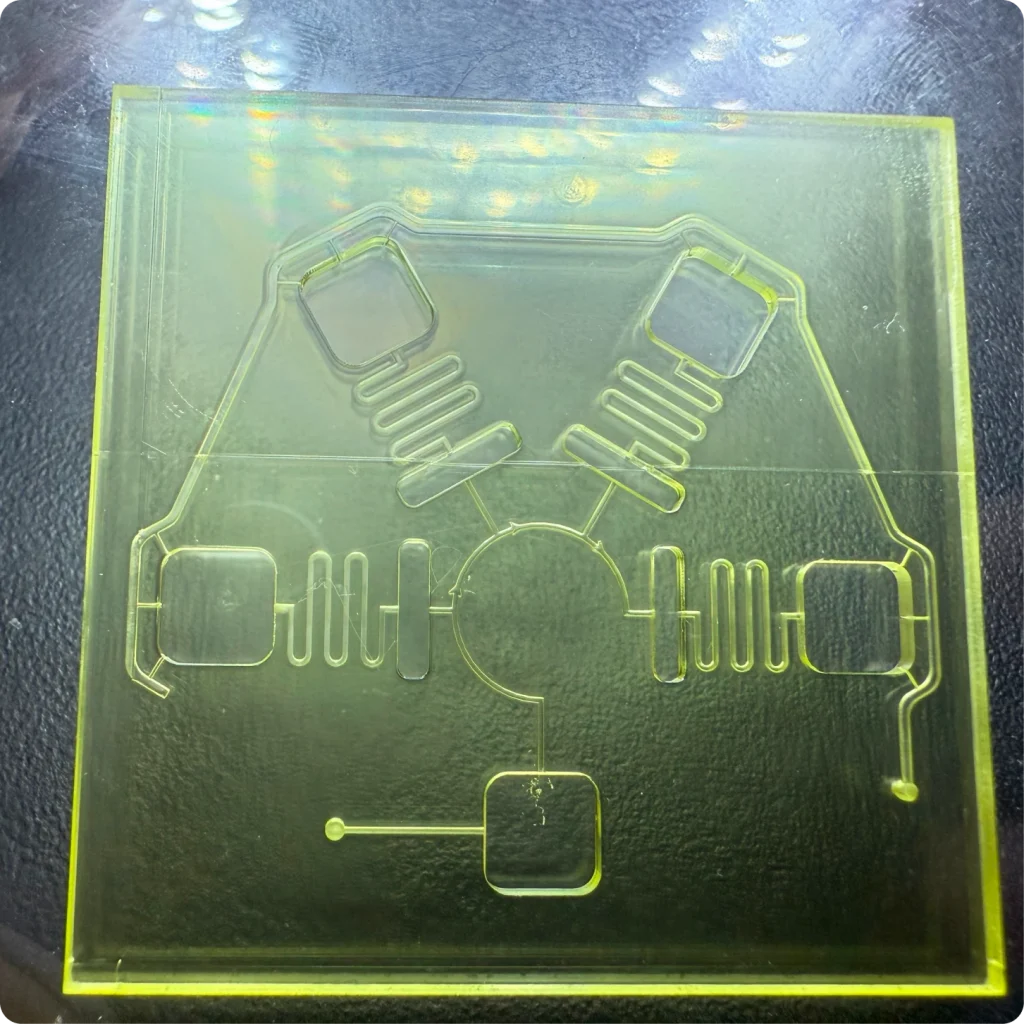

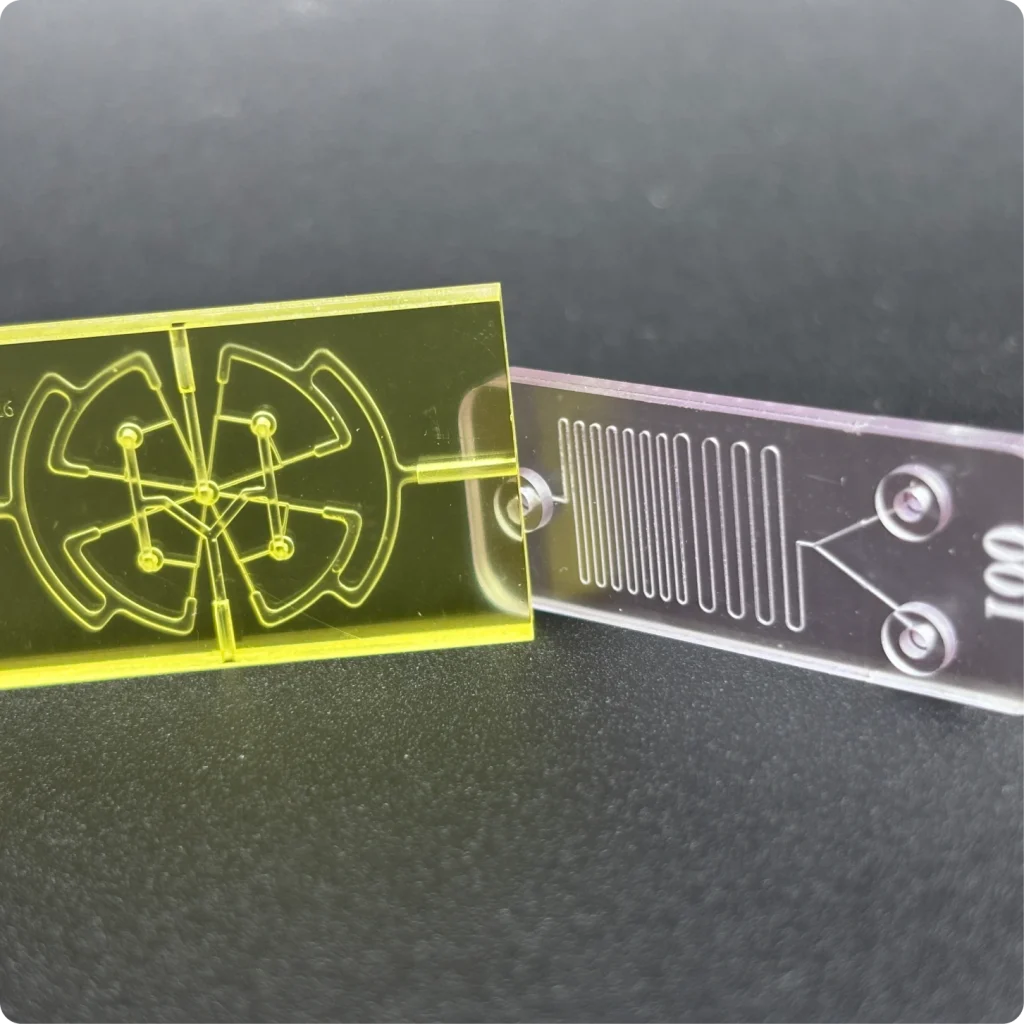

Microfluidics & Devices

Fabricate larger chips and fluidic assemblies with fine detail.

Prototyping & Tooling

Rapid iteration of precision micro-tooling and molds.

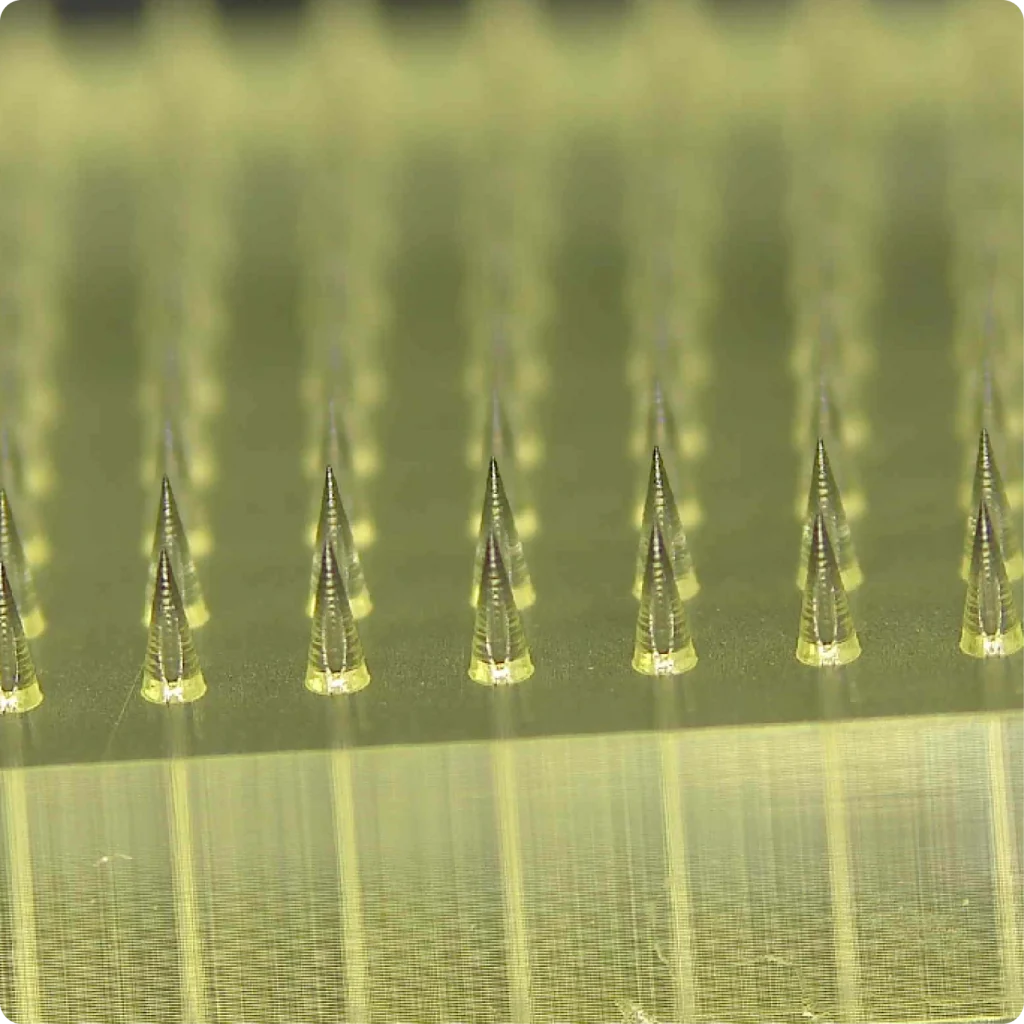

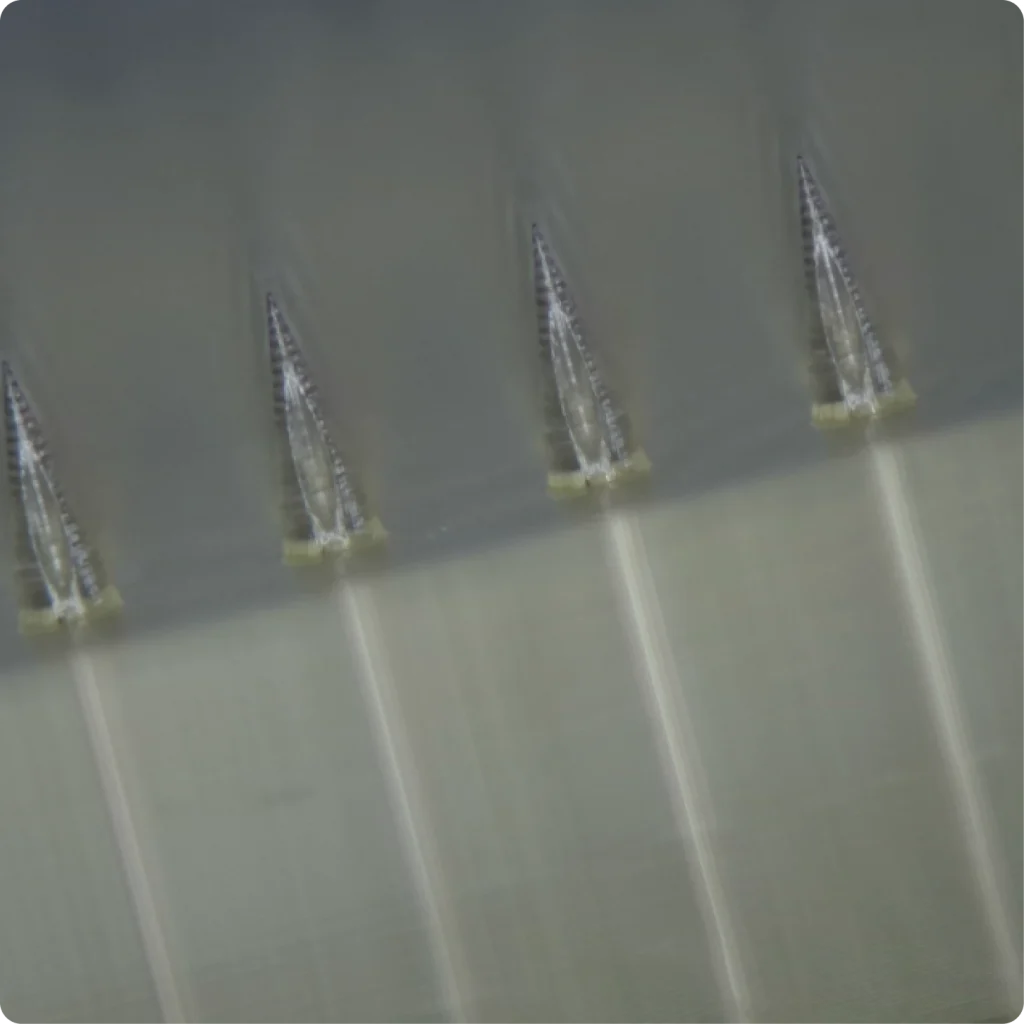

Medical & Dental

Micro-scale devices, guides, and components for healthcare applications.

Micro Nano 3D Printers Comparison

	Micro P135 35µm Micro Nano 3D Printing Equipment	Micro P215 Plus 15µm Micro Nano 3D Printing Equipment	Micro P110 Plus 10µm Micro Nano 3D Printing Equipment	Micro P102 Plus 2µm Micro Nano 3D Printing Equipment
Build Size	67.2 × 37.8 × 150 mm	84 × 63 × 70 mm	115 × 128 × 65 mm	60 × 60 × 50 mm
Optical Accuracy	35µm	15µm	10µm	2µm
Print Layer Thickness	5–50µm	5–50µm	2–50µm	2–50µm
Light Source	UVLED	UVLED	4k UVLED	4k UVLED
Equipment Size	560 × 600 × 650 mm	615 × 670 × 650 mm	650 × 700 × 700 mm	615 × 670 × 650 mm
Pixel Count (X, Y)	2.07M	23.52M	140M	900M
Printing Materials	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.
