Micro P215 Plus

15µm Precision Micro-DLP 3D Printer

The Micro P215 Plus delivers dependable 15µm optical accuracy across an 84 x 63 x 70mm build area, pairing a UVLED light engine with 23.52M-pixel resolution. Positioned as the versatile mid-range of the Nano-XS3DTech lineup, it offers an excellent balance of precision, build capacity, and value — ideal for engineering teams, service bureaus, and educational labs that need reliable micro-scale printing across a wide range of materials. Mounted on a vibration-isolated stand, the P215 Plus brings professional micro-DLP capability within reach for a broad set of applications.

cfc1b87d_2a4c_4ac6_9518_22b1ed38fc5bq_photoroom_1

Key Benefits:

Versatile 15µm Optical Accuracy – Reliable precision for a wide range of micro-scale parts and prototypes.
Balanced Build Volume – 84 x 63 x 70mm accommodates taller parts and mixed part batches.
UVLED Light Engine – Consistent, uniform curing across the full build area.
Fine Layer Control – 5–30µm print layer thickness for smooth, accurate vertical resolution.
23.52M Pixel Density – Strong XY resolution for detailed micro-features.
Vibration-Isolated Platform – Stable stand construction for repeatable accuracy.

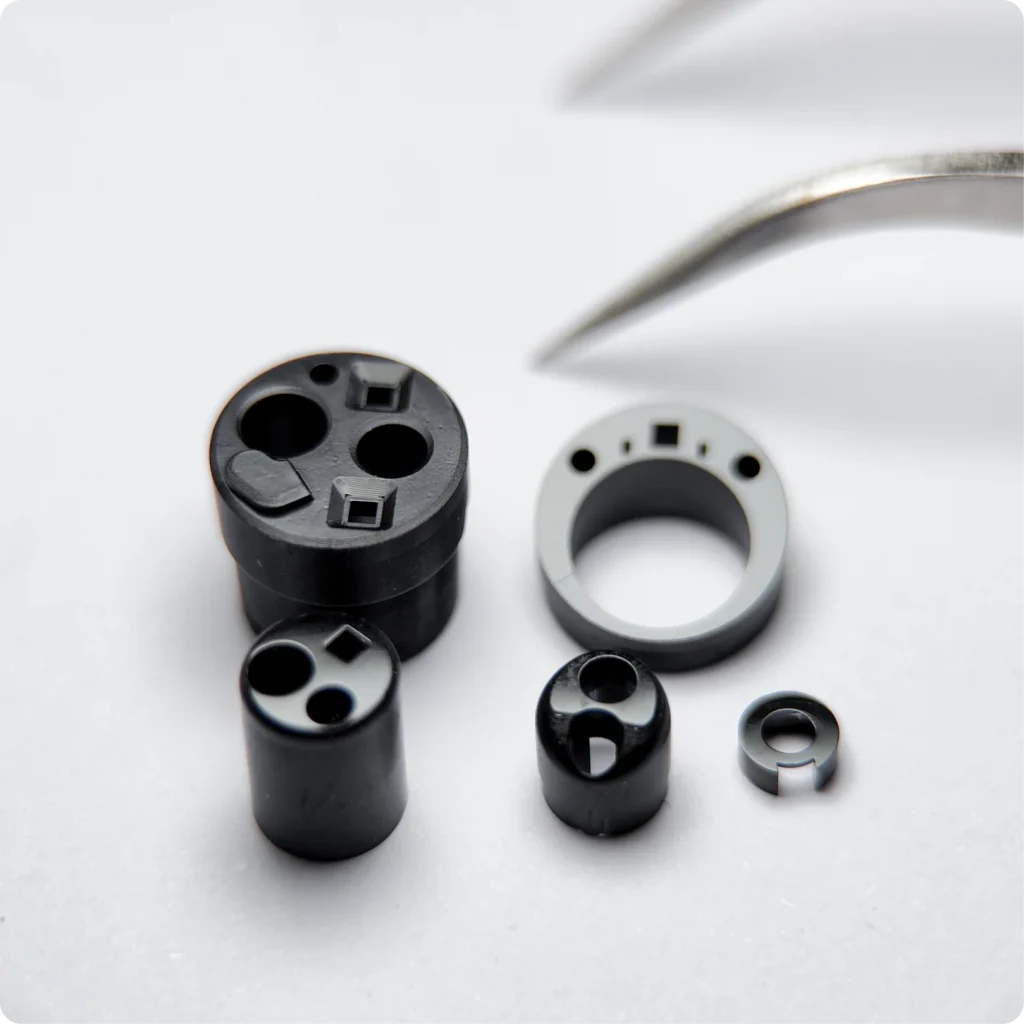

Broad Material Compatibility – Photosensitive, high-temperature, fully transparent, flexible, and ceramic resins (zirconia, alumina).

Technical Specification

Optical Accuracy	15μm
Build Size	84 x 63 x 70mm
Light Source	UVLED
Print Layer Thickness	5–30μm
Pixel Count (X, Y)	23.52M
Equipment Size	615 x 670 x 650mm
Printing Materials	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials

Why Choose the Micro P135?

Ideal Applications

The Micro P215 Plus delivers precision micro-scale 3D printing with the detail, material versatility, and reliability professionals demand.

Engineering Prototypes

An Detailed functional prototypes for product development.

Micro-Tooling & Molds

Precision molds and tooling for small-part manufacturing.

Education & Research

Reliable micro-printing for university and lab environments.

Jewelry & Dental

Fine-detail patterns, models, and components.

Micro Nano 3D Printers Comparison

	Micro P135 35µm Micro Nano 3D Printing Equipment	Micro P215 Plus 15µm Micro Nano 3D Printing Equipment	Micro P110 Plus 10µm Micro Nano 3D Printing Equipment	Micro P102 Plus 2µm Micro Nano 3D Printing Equipment
Build Size	67.2 × 37.8 × 150 mm	84 × 63 × 70 mm	115 × 128 × 65 mm	60 × 60 × 50 mm
Optical Accuracy	35µm	15µm	10µm	2µm
Print Layer Thickness	5–50µm	5–50µm	2–50µm	2–50µm
Light Source	UVLED	UVLED	4k UVLED	4k UVLED
Equipment Size	560 × 600 × 650 mm	615 × 670 × 650 mm	650 × 700 × 700 mm	615 × 670 × 650 mm
Pixel Count (X, Y)	2.07M	23.52M	140M	900M
Printing Materials	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.	Photosensitive Resin, High-Temperature Resistant Resin, Fully Transparent Resin, Flexible Resin, Zirconia, Alumina and other Ceramic Materials.
