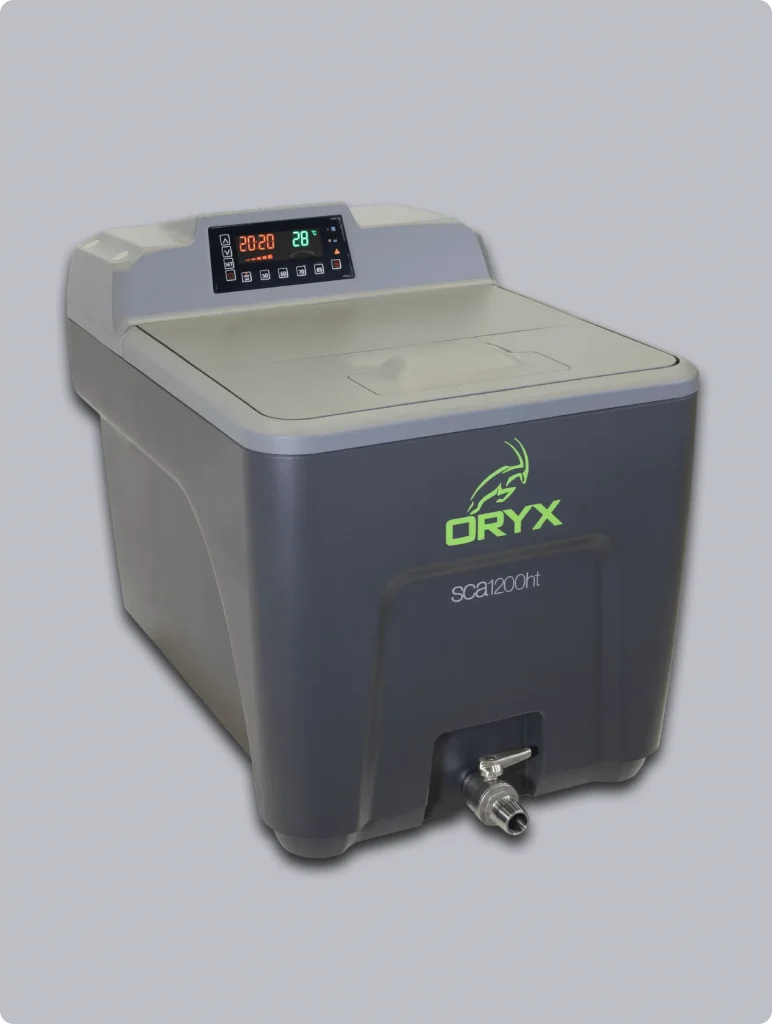

SCA1200ht

About SCA1200ht

Crafted to Enhance User Efficiency and Comfort, Built with Precision for Performance and Durability.

The sca1200ht sets the benchmark for affordable, automated removal of soluble supports from 3D printed parts. Specializing in the removal of soluble supports, it’s the go-to choice for handling complex geometries with precision. Compatible with a wide range of materials—including ABS, ASA, PC, Nylon, PEEK, Carbon-fiber, and more—it excels in support removal across extrusion-based and material jetting technologies like PolyJet and FDM.

This product family offers numerous pre-configured settings tailored to different soluble support materials, ranging from water-based to caustic concentrates. The sca1200ht delivers optimal agitation and temperature control, striking the perfect balance between effective support removal and preserving the delicate features and critical dimensions of intricate parts.

Additional benefits include an intuitive electronic interface for setting temperature and timing, easy loading and unloading of parts, and a robust stainless steel tank designed to withstand caustic solutions. The sca1200ht is the ultimate choice for efficient, reliable, and high-quality soluble support removal.

SCA 1200ht – Key Features

Built to Maximize User Efficiency and Comfort, Crafted with Precision for Performance and Reliability.
OverallSize: 26.0Lx17.5Wx20.5Hin.(66.0Lx44.5Wx52.0Hcm)
10 x 10 x 12 in. (25.0 x 25.0 x 30.0cm) Stainless Steel Removable Parts Basket
Capacity: 12.2 gallons (46.2 liters)
Stainless Steel Tank & Durable Pumping System compatible with water-soluble and caustic-soluble printed support materials
Proven Support Removal from FFF/FDM parts including ABS, ASA, PC, Nylon, PEEK and others
Presets designed for 3D printed parts temperatures: 50°, 60°, 70° and 85° C
“Heat Off” temp. selection for Material Jetting & Curing (MJ), such as Polyjet
User-controlled Digital Timer
Unique Spray Nozzle optimizes flow coverage with gentle flow for sensitive parts
Power Requirements: 100-120V~ 50-60Hz 12A or 220-240V~ 50-60 Hz 9A versions
Electrical Protection: 15A/ 250VAC Fuse
Whisper-quiet Operation for in-office use or industrial setting
Easily-accessed Drain on front
Integral Hinged Lid to reduce water waste and & maintain accurate temperature
Built-in Safety Features such as Over Temperature & Water Level Alarms
Field replaceable Sub-assemblies
CE/ cTUVus/ RoHS/ WEEE/ RCM Regulatory Approvals
1 Year Warranty & US-based Technical/Customer Support with strong AM industry experience

SCA 1200ht User Manuals

Click below to download user manuals and product spec documents for the sca1200ht.
The sca1200ht is the next-generation upgrade to the original, widely acclaimed 1200 model, featuring a host of notable enhancements. Its user-friendly interface, quiet operation, and compact footprint make it an ideal choice for AM service providers, manufacturers, and labs with frequent in-house prototyping. Built for durability in harsh, highly caustic environments, the sca1200ht requires minimal maintenance and offers straightforward servicing. As a result, the sca1200ht by ORYX sets the industry standard for efficient and reliable soluble support removal

sca1200ht Declaration of Conformity

sca1200ht Brochure

sca1200ht Quick Reference Guide

sca1200ht User Manual - English

sca1200ht User Manual - French

sca1200ht Repair Manual Ver. 3.3 - 6/18/25
